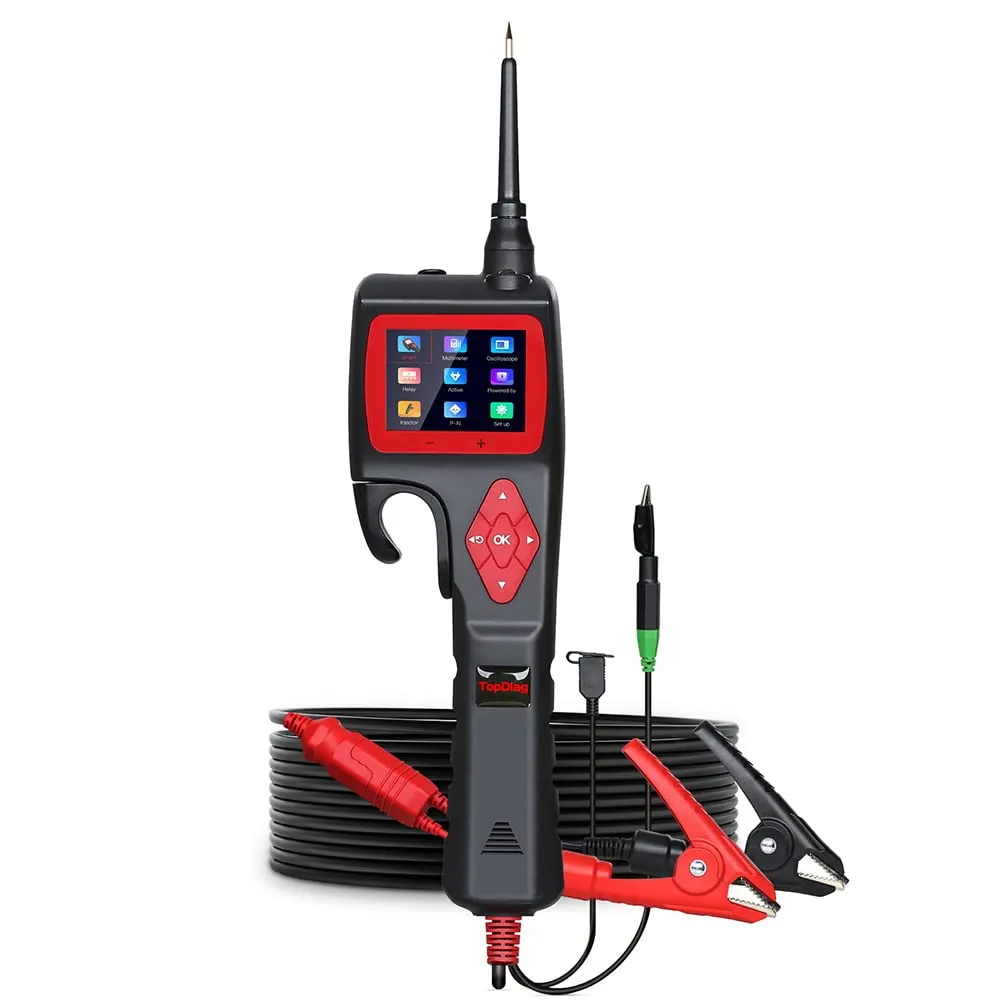

- 【Upgraded Circuit Test Kit】: P200 Automotive Circuit Tester features: 1.Intelligent identification of voltage/resistance 2.Multimeter mode 3.Relay test 4.Injector test 5.Diode test 6.Oscilloscope function 7.0-5V adjustable power supply 8.Activation of vehicle components 9.Positive and negative polarity test 10.Intelligent circuit breaker protection 11.Screen style background optional 12.Network can be upgraded online 13.Built-in Multi-lingual settings.
- 【Smart Test】: Power Circuit Probe Kit can automatically identify the signal under test, Automotive circuit tester Accurately and quickly detect voltage and resistance, and save time for switching between different test modes. Equipped with about 20ft extension cord for you to reach all around your vehicles, trucks and trailers. Also, the built-in flashlight can illuminate your working area.
- 【Circuit Probe Tester Specifications And Parameters】: P200 Automotive Circuit Tester Parameters: ①Operating temperature: 0 - 60 ° C (32 - 140 f °) ② Storage temperature: 40 - 70 ° C (- 40 - 185 f °) ③ External power supply: 12V or 24V, powered by battery ④ Minimum working voltage: 9V -- 30V ⑤ Maximum measured voltage: 0.1V -- 150V ⑥ Resistance measurement range: 1 ohm ~ 200K ohm ⑦ Measuring current range: 0 ~ 18a ⑧ Maximum continuous current: 18a.
- 【Component Activation】: Topdiag P200 probe tester has 3 activation modes and overload current settings can supply power to components such as lamps, cooling fans, starters, relays, and washers. The 0~5V power supply function is very effective when checking the wiring with ECU. Powered by the car battery.
- 【About Service】: power circuit probe tester kit extensive application, professional diagnosis, support multi language. If you have any questions about powerful circuit tester kit, please email us and we will reply to you within 24 hours.
- 【Widely Application】P200 Circuit Tester is widely testing continuity, signal circuit, It is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and intelligent! which is the only upgradeable automotive circuit tester on the market.
- 【Technical assistance】If you have any installation problems about P200 power scan kit, please email us at any time. We can provide technical support.
- Product Dimensions : 15.43 x 11.65 x 4.33 inches; 3.88 Pounds
- Date First Available : November 5, 2021
- Manufacturer : TopDiag
- Country of Origin : China
