Name: Jonard Tools FPL-5555 Fiber Power Meter (-50 to 26 dBm) w/Data Storage & SM/MM Optical Light Source Kit
SKU: 681637

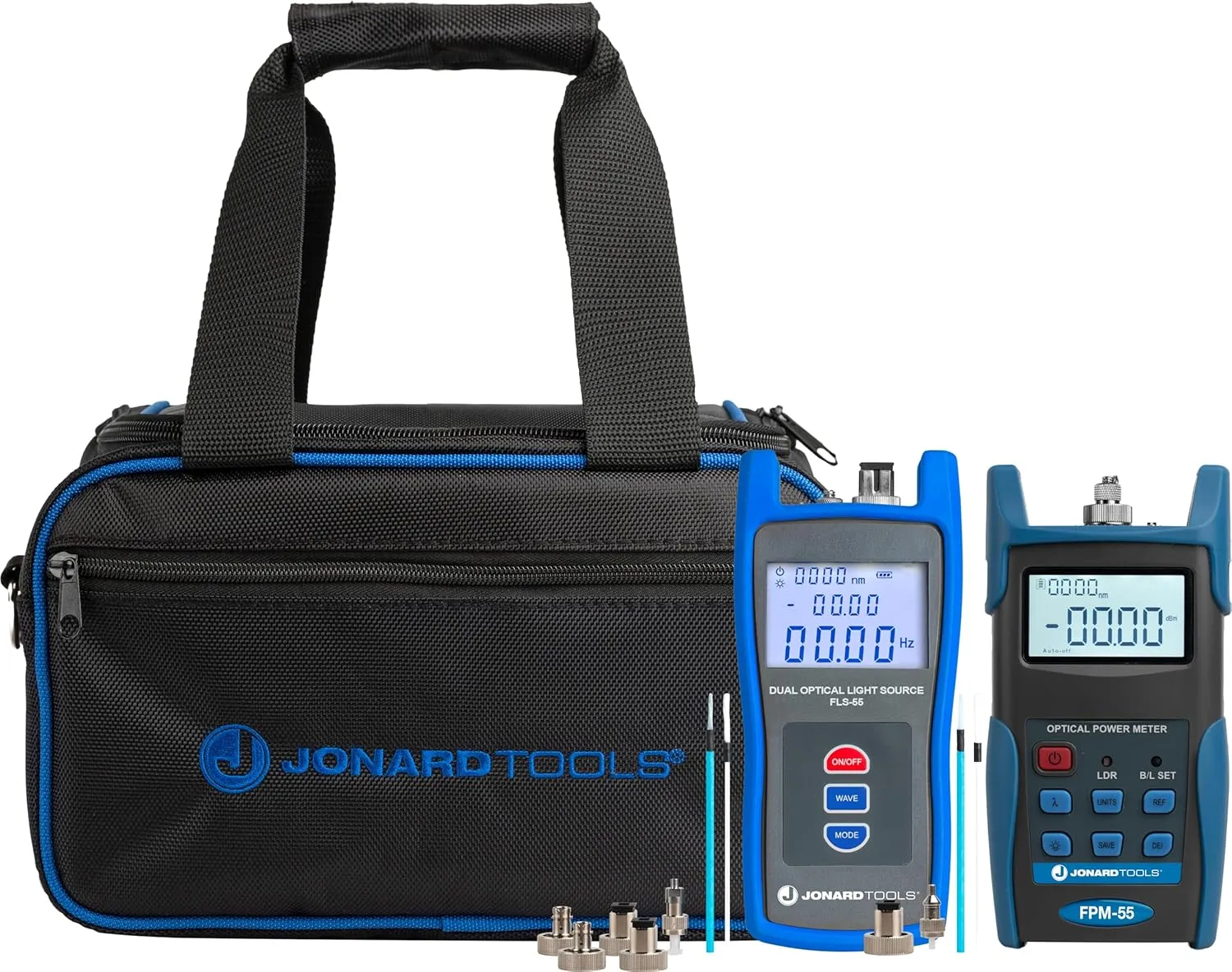

FIBER TESTING: This tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing, with included FPM-55 power meter, FLS-55 light source, and H-22 Carrying Case
FPM-55: Measures wavelengths from 800-1650 nm, stores up to 1,000 data entries, and includes FC/SC adapters for APC/PC/UPC connectors as well as an LC adapter for PC/UPC connectors only
FLS-55: Provides a stable light source at 850/1300 nm for multimode or 1310/1550 nm wavelengths singlemode fiber measurements, and includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
H-22: Rugged carrying case with straps made from heavy-duty polyester material for high durability and long life
INCLUDES: FPM-55 Fiber Optic Power Meter with Data Storage (-50 to 26 dBm), FLS-55 Multi-mode & Single-mode Fiber Optic Light Source, H-22 Rugged Carrying Case, (6) AA Batteries (required for operation), (4) Cleaning Swabs, (2) FC Adapters, (2) LC Adapters, and (2) SC Adapters (UPC)

This tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing. This kit includes:

The FPM-55 Fiber Optic Power Meter for measuring wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
Stores up to 1,000 data entries which can be downloaded via USB
Includes FC/SC adapters for APC/PC/UPC connectors and an LC adapter for PC/UPC connectors only

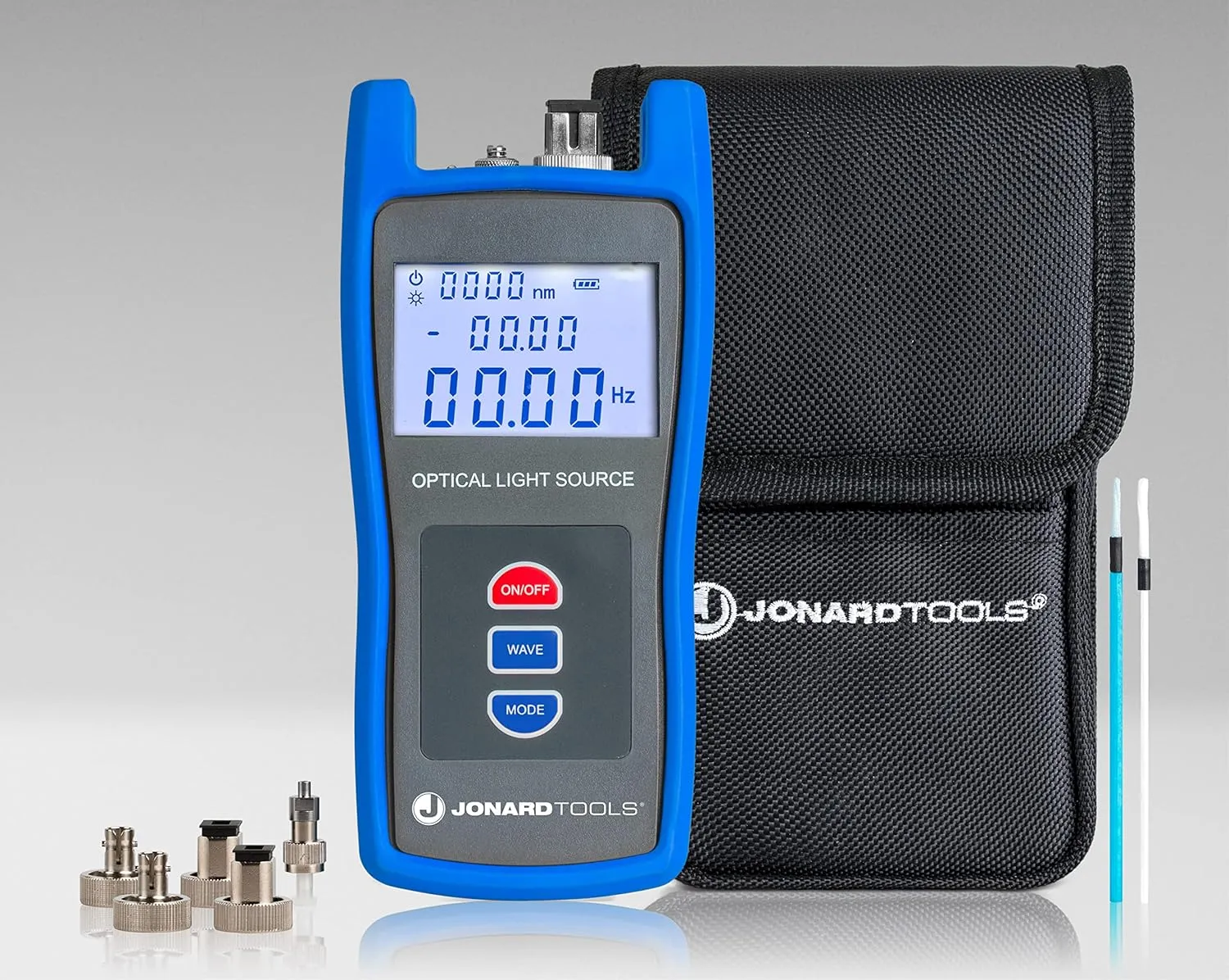

The FLS-55 Fiber Optic Light Source for providing a stable light source at 850/1300 nm for multimode or 1310/1550 nm wavelengths singlemode fiber measurements
Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 nm and 1550 nm wavelengths
Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
A FREE BAG! The H-22 Rugged Carrying Case with Straps ($35 value)!
Nylon Carry Case (FPM-55)
Storage Pouch (FLS-55)
With both the FPM-55 and FLS-55
Instruction Manuals
(3) AA Batteries each (required for operation)
(2) Cleaning Swabs each
FC Adapter, LC Adapter, and SC Adapters

Package Dimensions ‏ : ‎ 11.22 x 9.41 x 6.57 inches; 4.23 Pounds
Date First Available ‏ : ‎ April 25, 2023
Manufacturer ‏ : ‎ Jonard Tools
Country of Origin ‏ : ‎ China
