- COMPATIBLE MODELS:The Aluminium Alloy Interlock Plate is compatible with Bryant 150 or 200 Amp Main Breaker. Fit indoor/outdoor generator,mounts on front of breaker panel. Please check the model number of the product before purchasing!

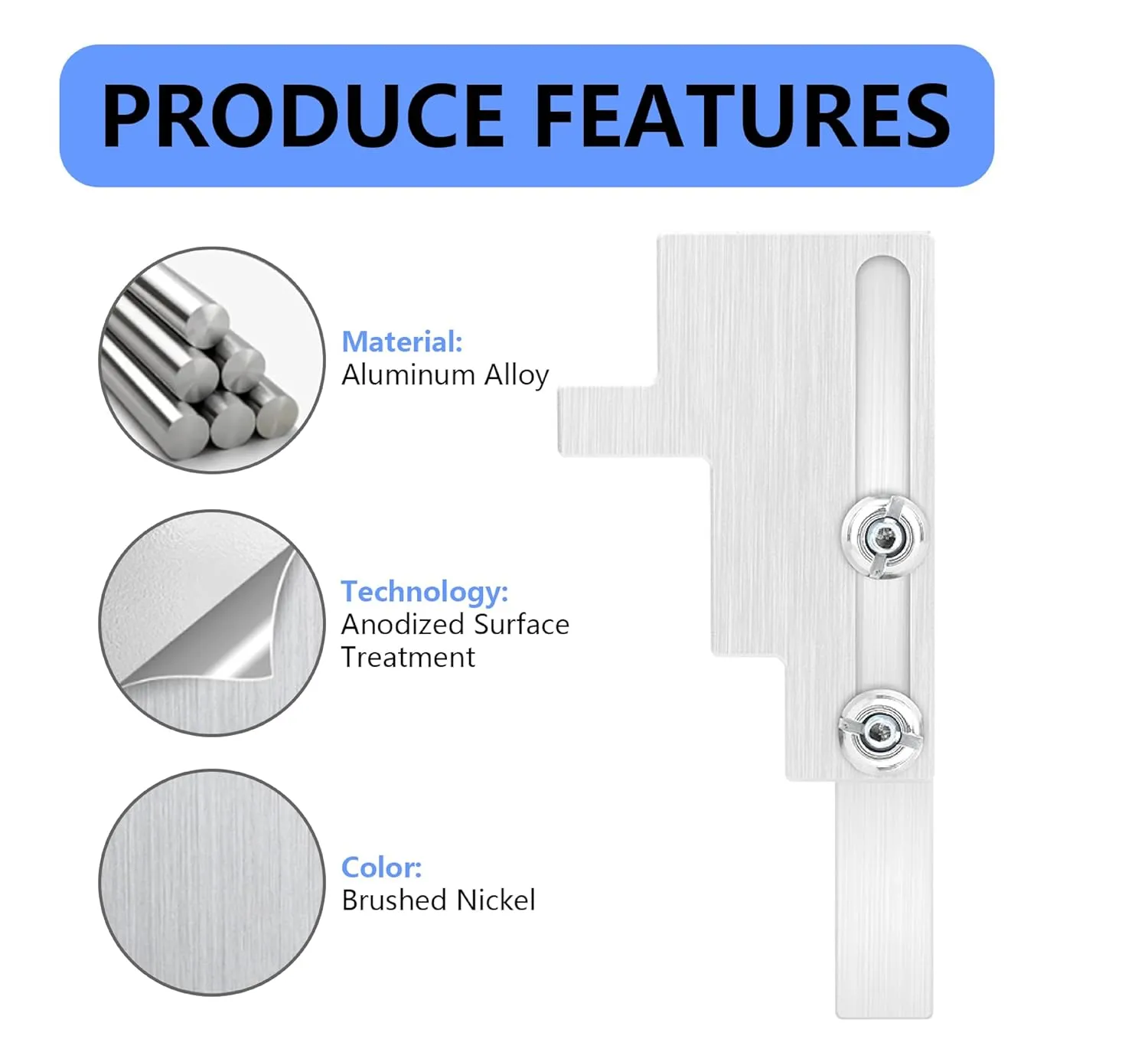

- DURABILITY: The electrical interlock panel is made of sturdy aluminium alloy with high quality chemical resistance and thickness. Resistant to abrasion and corrosion, it is very durable and suitable for long-term use.
- SAFETY: The chamfered corners and surface form a dense film of aluminium oxide, which provides better electrical insulation and thermal insulation, ensuring your electrical safety. The electrical interlock panel will maintain a stylish look and smooth surface to protect the user's hands.

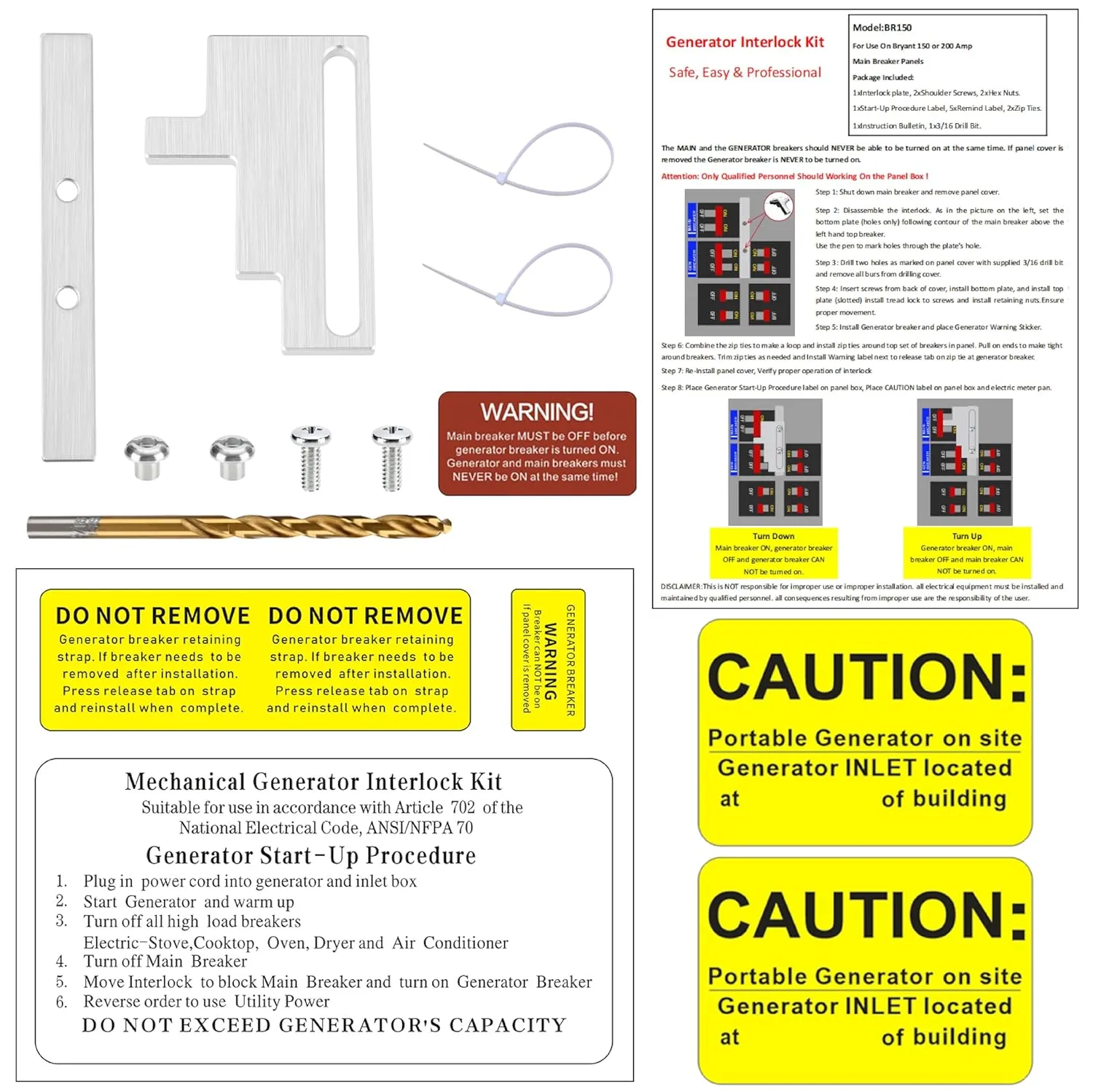

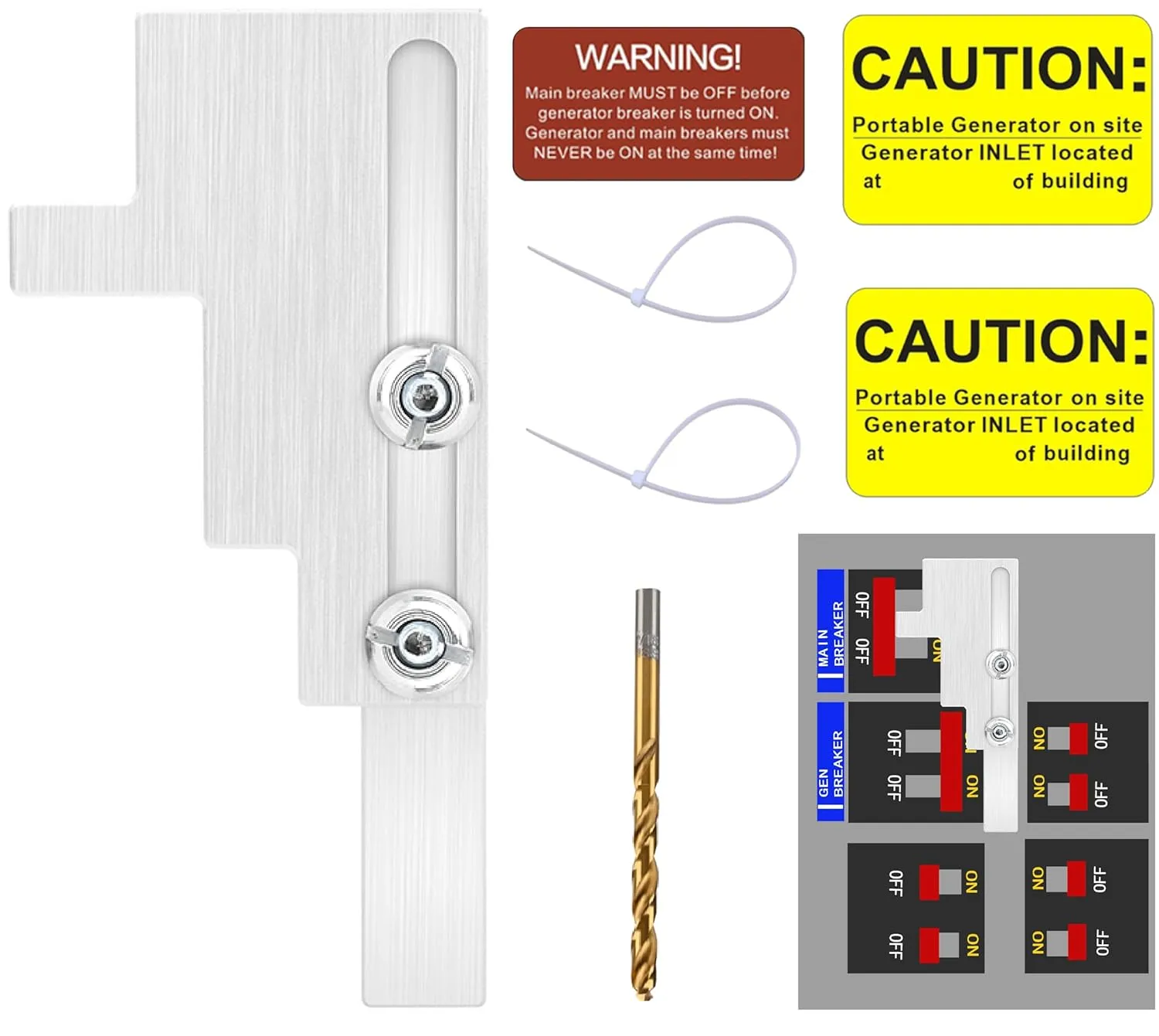

- KITS INCLUDE:Recommend to operate by licensed electricians. Easy to install, Package including everything you need. Our Professional and Interlock Kit Top and Bottom Interlock Plates x1, Shoulder Screws x2, Hex Nuts x2, Generator Start-up Procedure Label x1, Reminder Labels x5, Generator Breaker Retainer Straps x2(11.8 inches x2), 3/16''Drill Bit x1. Installation Guide x1.
- RELIABILITY:Manual Interlock Switch Kit allows portable generators to safely feed back power to the switchboard and home wiring. Avoiding the inconvenience that can be caused by unexpected power outages. Also ensures that you have access to all your household appliances. Prevents power from the utility and generator from being turned on at the same time. Does not put the electrician in danger and damage electrical equipment during a power outage.
Why every home must have a generator interlock kit??
➊During a power outage, the breaker interlock kit safely directs generator power to any circuit in your home, so you still have electricity available in your home.
➋When using generators, follow National Electrical Code requirements and require generator interlocks to be installed on circuit breaker panels. Interlock kits protect utility workers during electrical repairs.
➌It is very dangerous to use utilities and generators at the same time. the generator interlock switch can prevent the utility and generator power from being turned on at the same time, avoiding circuit load burnout or generator burnout, etc.
Features:
- Compatible with Bryant 150 or 200 Amp Main Panels Break.
-No need for a separate generator panel, economical and practical.
-Ensures electrical safety in homes and businesses.
-Easy to install, includes everything you need.
-Laser cut to ensure accurate and proper installation.
-Generator interlock kit consists of two sliding metal plates held together by three bolts.

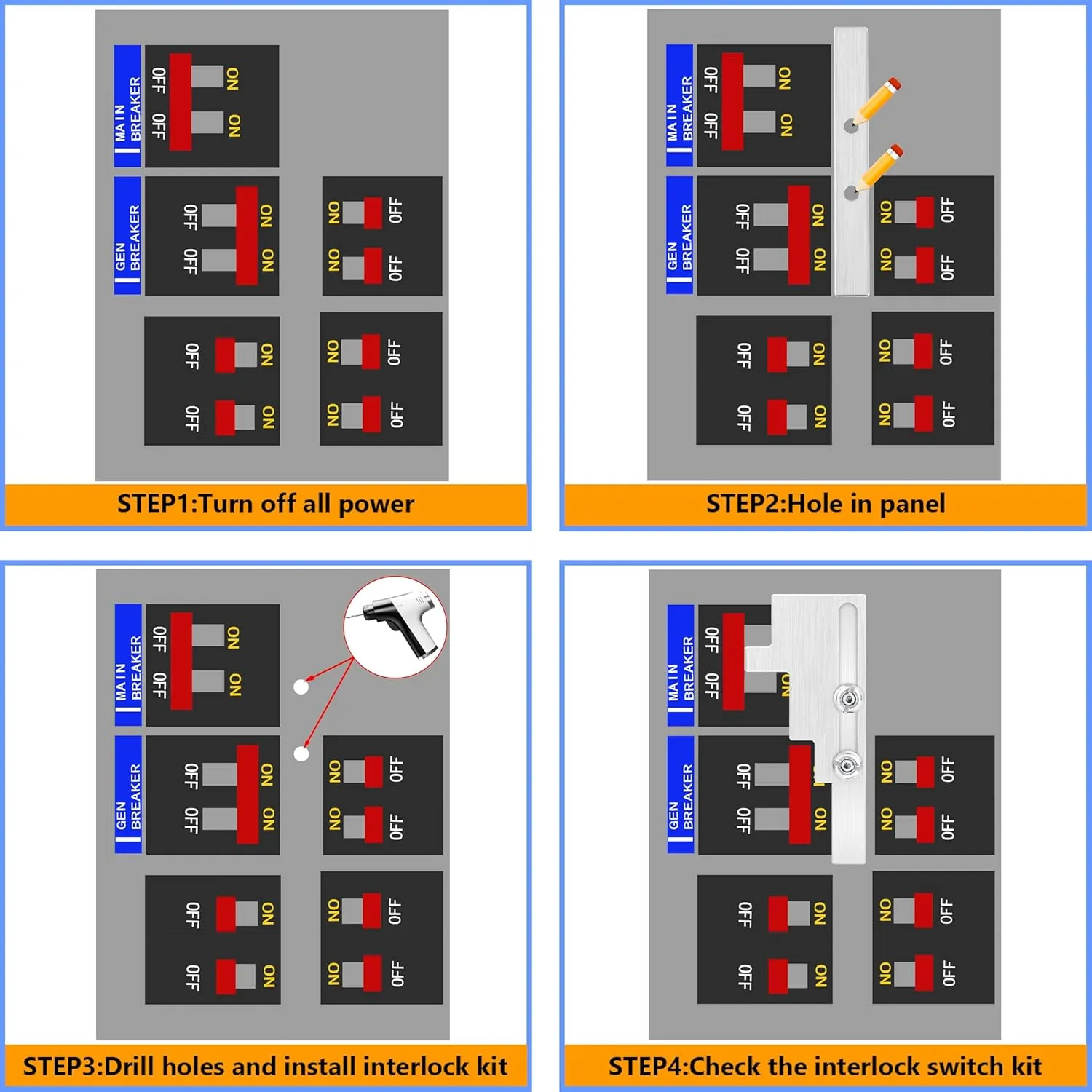

Installation steps:
Step1. Power Off Power off, place the bottom plate(holes only) EXACTLY as shown and then use the pen to mark holes through the bottom plate's holes.
Step2. Drill Holes Remove the panel cover from the breaker panel and drill the two holes marked on the panel cover using the supplied 3/16'' drill bit.
Step3. Install Interlock Insert the screws from rear of cover, install the bottom plate and top plate on the front cover of the breaker panel. Please make sure that the top plate can be pulled freely (enough space).
Step4. Test The Interlock As shown, you see that the main breaker is ON, the generator breaker is OFF and can not be switched ON. The inter lock has been properly installed. Lastly, apply all labels on electric panel.
- Package Dimensions : 8.27 x 5.9 x 0.5 inches; 2.56 ounces
- Date First Available : December 26, 2024
- Manufacturer : STPCTOU
- Country of Origin : China
