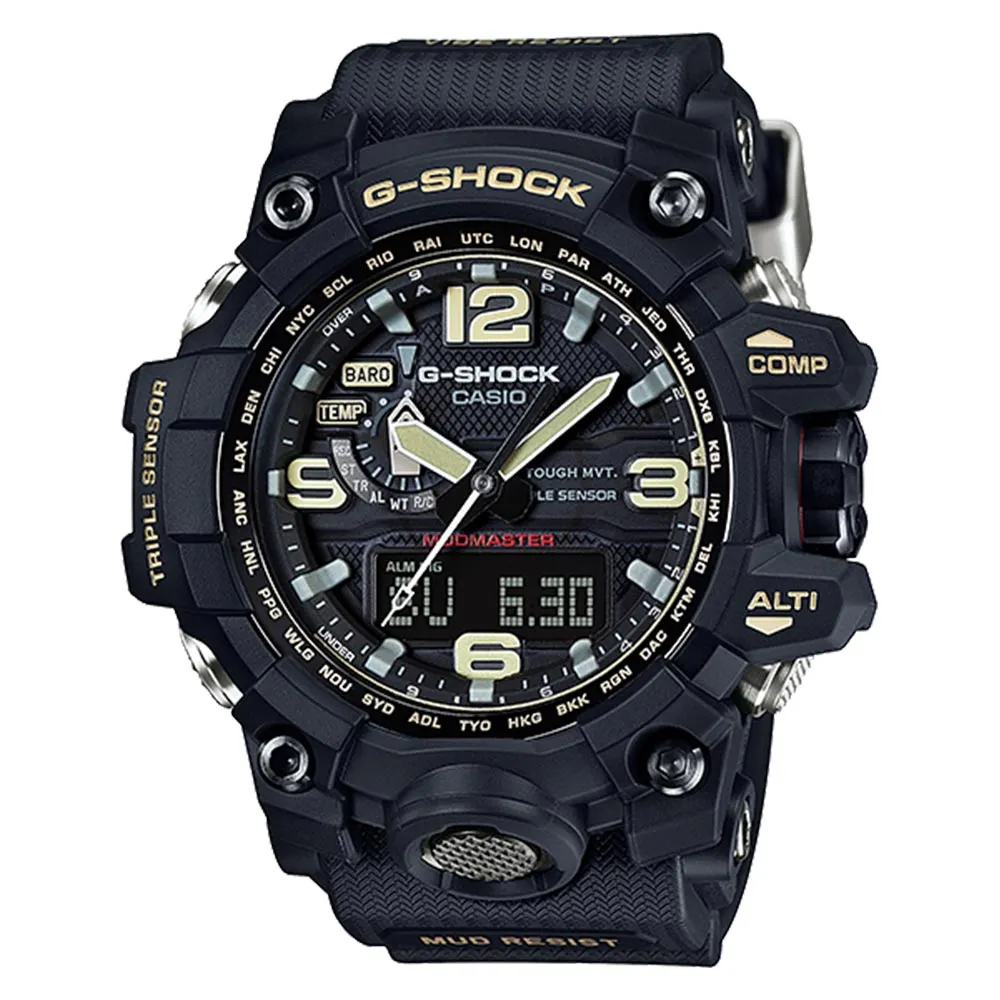

GWG1000-1A

Features:

Introducing a new basic G-SHOCK brand black MUDMASTER model for the MASTER OF G Series watches with special functions for use under extreme conditions on the land, on the sea, and in the air. The extreme black and minimal colouring of this model helps to ensure that vital information is clear and easy to read, even under the harsh conditions encountered by rescue teams and others who work in extreme environments.

The distinctive G-SHOCK black colouring of this model gives it a no-nonsense look of serious toughness.

NEW MUD RESISTANCE TRIPLE SENSOR
This new MUDMASTER model was created especially for this whose work takes it into areas where piles of rubble, dirt, and debris are present.

A special vibration-resistant construction lets them stand up to wear while operating cutters, crushers, drills and other heavy machinery to clear way large obstacles. This is CASIO's first analog watch to come with Mud Resist construction, which helps to ensure that nothing gets into the watch when down and dirty work takes you deep into the dirt and sludge. Multiple gaskets are used on the pipes that guide buttons and shafts, which keeps mud out. These pipes not only act to protect buttons from impact, they also enhance button operation. The screw-in force of the screw lock bezel on an internal gasket further increases mud resistance. A new bezel structure lets you visually check whether the bezel has been screwed in adequately.

In addition, Triple Sensor Version 3 capabilities provide instant access to direction, barometric pressure, and temperature information when needed under tough conditions.

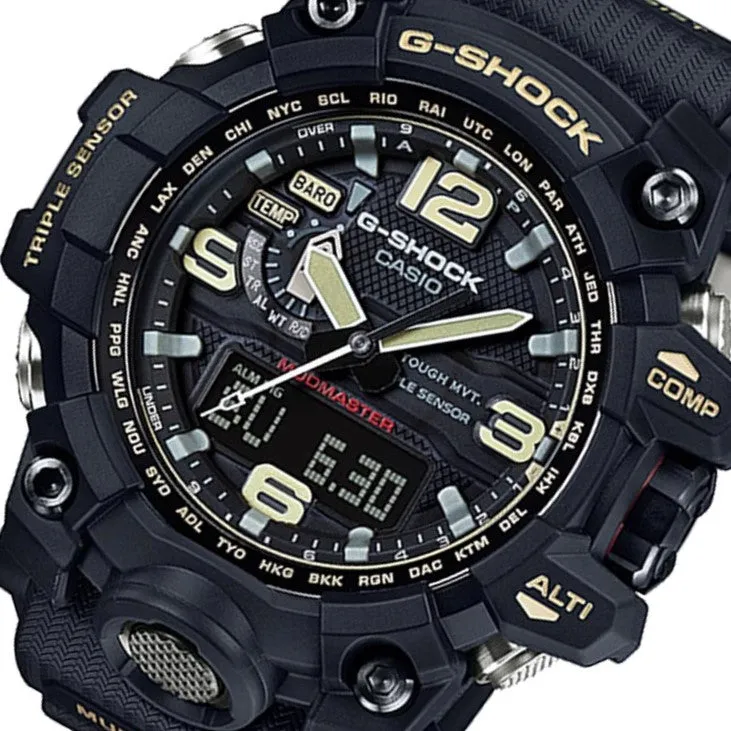

The face of the watch is marked with large Arabian numerals as 12, 3, 6, and 9 o'clock for easy reading. The face is illuminated by a double LED light and protected by a sapphire crystal to ensure high visibility under virtually any conditions imaginable.
The band surface is processed to resemble a cloth band texture, and the hour and minute hands are shaped with points that make them resemble warning markers. All buttons have a checkered surface for surer operation, and the overall design is tough and rugged.

Vibration Resistant Structure
Digital compass, barometric pressure/altitude, temperature readings Double LED light illuminates the face and digital display for outstanding readability.
Screw-in Crown
Multiband 6 (Automatically adjusts time settings based on reception of one of the six-time calibration signals around the globe: Japan (2), China, United States, England, Germany.)
Tough Solar

Specifications:

Shock Resistant
Vibration resistant
Screw Lock Crown
Neobrite
Sapphire Glass with non-reflective coating
Mud Resistant
200-meter water resistance
Case / bezel material: Resin / Stainless steel
Resin Band

Double LED light
LED light for the face (Full auto LED light, selectable illumination duration, afterglow)
LED backlight for the digital display (Full auto LED light, selectable illumination duration, afterglow)

Tough Solar (Solar powered)

Time calibration signal reception
Auto receive up to six* times a day (remaining auto receives cancelled as soon as one is successful)
*5 times a day for the Chinese calibration signal
Manual receive
The latest signal reception results
Time Calibration Signals
Station name: DCF77 (Mainflingen, Germany)
Frequency: 77.5 kHz
Station name: MSF (Anthorn, England)
Frequency: 60.0 kHz
Station name: WWVB (Fort Collins, United States)
Frequency: 60.0 kHz
Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/ Saga)
Station name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz

The auto hand home position correction
Digital compass
Measures and displays direction as one of 16 points
Measuring range: 0 to 359°
Measuring unit: 1°
60 seconds continuous measurement
Hand indication of north
Bidirectional calibration
Magnetic declination correction

Altimeter
Measuring range: –700 to 10,000 m ( –2,300 to 32,800 ft.)
Measuring unit: 1 m (5 ft.)
Hand indication of altitude differential
Manual memory measurements (up to 30 records, each including altitude, date, time)

Auto log data (High/low altitudes, cumulative ascent and descent)
Others: Relative altitude readings (±100m /±1000m),
Selectable measurement interval: 5 seconds or 2 minutes
*1 second for first 3 minutes only
*Changeover between meters (m) and feet (ft)

Barometer
Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Display unit: 1 hPa (0.05 inHg)
Hand indication of pressure differential
Atmospheric pressure tendency graph
Barometric pressure tendency information alarm (beep and arrow indicates significant changes in pressure)
*Changeover between hPa and inHg

Thermometer
Display range: –10 to 60°C (14 to 140°F)
Display unit: 0.1°C (0.2°F)
*Changeover between Celsius (°C) and Fahrenheit (°F)

World time
29 time zones (29 cities coordinated universal time), daylight saving on/off, Home city/World time city swapping

1/100-second stopwatch
Measuring capacity: 23:59'59.99''
Measuring modes: Elapsed time, split time, 1st-2nd place times
Countdown timer
Measuring unit: 1 second
Countdown range: 60 minutes
Countdown start time setting range: 1 second to 60 minutes (1-minute increments)

5 daily alarms
Hourly time signal
Hand shift feature (manual or auto (during altitude, barometric pressure, and temperature measurement))

Battery level indicator
Power Saving (display goes blank and hands stop to save power when the watch is left in the dark)

Full auto-calendar (to year 2099)
12/24-hour format
Button operation tone on/off
Regular timekeeping
Analog: 3 hands (hour, minute (hand moves every 10 seconds), second)
Digital: Hour, minute, second, am/pm, month, date, day
Accuracy: ±15 seconds per month (with no signal calibration)
Approx. battery operating time:
6 months on rechargeable battery (operation period with normal use without exposure to light after charge)
25 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
LED: White

Size of case: 59.5×56.1×18mm
Total weight: 119g
