- 【High-quality motor】Electric brushed motor equipped with reliable metal housing protects the internal circuit and has good heat dissipation performance with the holes to avoid thermal overload.
- 【Powerful motor】High speed electric motor is a 48v 1000w brush motor for efficient operation. The powerful motor has a rated speed of 3000rpm that can help you drive faster. With bicycle conversion kit, your bike or evo scooter will become an electric one. So you don't have to struggle to ride. Electric drives will replace human drives. You will feel relaxed when riding.
- 【3 speed gears】The controller has three speed gears to adjust the speed of the motor. You can adjust the appropriate speed to ensure safe driving. The drive handle has an LCD that shows the power of the e-bike clearly. So you will be able to recharge your batteries in time with.
- 【Complete kit】Brush electric bicycle kit contains most of the accessories for converting your bike. So you don't need to buy these accessories separately. That will be convenient for you. After being attached, the kit can be locked with the complimentary key to prevent others from stealing your bike. The handle is pre-loaded with a keyhole for smooth opening and locking.
- 【Guaranteed service】We stand behind the quality of our products and are committed to providing excellent customer service. If you encounter any issues with your bike wheels rim and tires, simply reach out to us and we will promptly address your concerns. Your satisfaction is our top priority, and we are here to ensure that you have a positive experience with our product.
Specification
Color: Black, Silver
Material: Copper, Iron and Aluminum
Chain Model: T8F
Motor Model: MY1020
Controller Model: LK-07
Voltage:48V
Power:1000W
Motor Type: Brush Motor
Unload Current: 2.2A
Rated Current: 26.7A
Unload Speed: 3700 rpm
Rated Speed: 3000 rpm
Rated Torque: 3.2N·m
Motor Efficiency: ≥78%
Motor Length: 15cm/5.91inch
Motor Shaft Length: 2.4cm/0.94inch
Motor Diameter: 10.2cm/4.01inch
Motor Screw Holes Distance: 9.489-9.511cm/3.736-3.744inch
Motor Height: 11cm/4.33inch
Motor Stand Screw Holes Distance (Horizontal): 5.6cm/2.2inch
Motor Stand Screw Holes Distance (Vertical): 10.2cm/4.01inch
Package Size: 29*17*19cm/11.4*6.7*7.5inch
Gross Weight: 6.2kg/13.7lbs

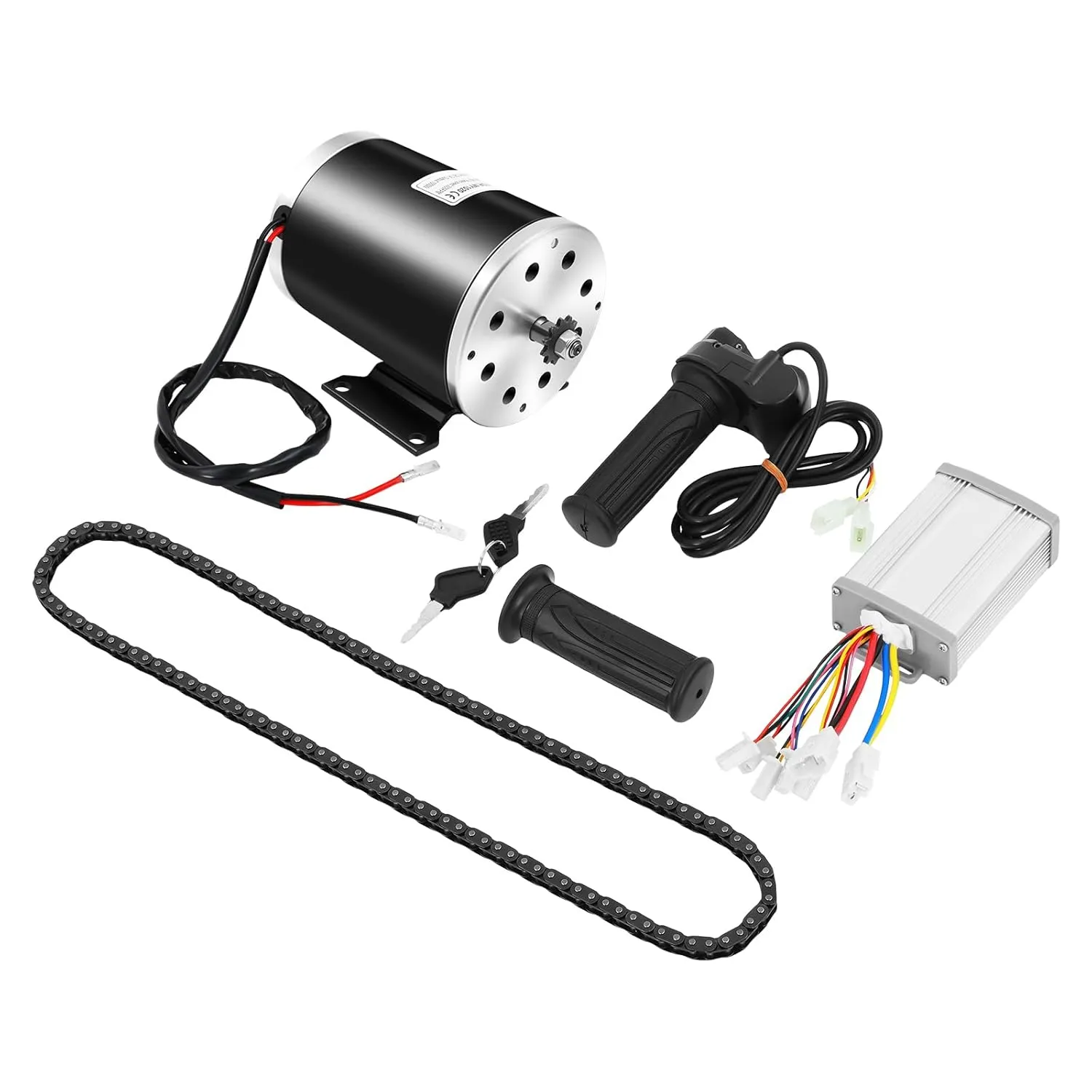

Package Included
1* Brush Motor
1* Controller
1* Drive Handle
1* Regular Handle Cover
1* Chain
2* Keys
Application
This conversion kit is suitable for small karts, beach bikes, EVO scooters, small electric motorcycles, etc.
Notes
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
- Date First Available : July 17, 2024
- Manufacturer : PROYONGOO
- Country of Origin : China
