- DURABLE: The motor kit is made of high quality copper, iron, aluminum, magnets and rubber, which is strong, stable, rust-proof and wear-resistant to ensure a long service life and strong load-bearing capacity, with a maximum load capacity of about 330.69-440.92 lbs
- POWERFUL MOTOR: The motor kit adopts a 350W brush geared motor, which can reach a maximum speed of 6.21mile/h. Compared with brushless geared motors, the motor kit features high starting torque, simple control, and high adaptability
- HIGH SAFETY: F insulation rating and IP33 protection rating make it safe and reliable, you can use it with confidence. The motor kit solves the problem of traditional scooters that are difficult to reverse in confined spaces or on steep ramps. When you need to back up, the motor kit allows you to maneuver the scooter more safely and easily, increasing the vehicle's agility and utility
- ELECTRICAL ASSISTANCE: The motor kit provides electric assistance to reduce the physical burden on the rider, especially when riding uphill, against the wind or over long distances, making it easy and enjoyable for riders of all ages and fitness levels. The digital display throttle not only adjusts the motor boost level, but also integrates a digital display that shows the battery voltage in real time, allowing the rider to see the status of the vehicle at a glance, making operation more intuitive and precise
- COMPLETE KIT: The motor kit includes all the accessories needed to convert your scooter, no need to buy them separately. The matching kit will provide you with more stable and consistent performance. The 10-inch diameter wheels feature a non-slip design to easily handle most road conditions
Application
This product is suitable for small go-karts, electric wheelchairs and senior mobility scooters.
Specification
Material: Copper, Iron, Aluminum, Magnetic and Rubber
Color: Black
Assembly Required: Yes
Motor Type: Brush Gear Motor
Rated Voltage: 36V
Output Power: 350W
Unload Current: ≤2A
Rated Current: ≤12.5A
Unload Speed: 370rpm
Rated Speed: 330rpm
Rated Torque: 1.1N.m
Efficiency: ≥80%
Gear Ratio: 9:7:1
Insulation Class: F
Protect Grade: IP33
Speed: 10km/6.21mile/h
Wheel Diameter: 25.4cm/10in
Axle Hole Diameter: 12mm/0.47in
Package Size: 48*37*30cm/18.9*14.57*11.81in
Load Capacity: About 150-200kg/330.69-440.92lbs
Gross Weight: 17kg/37.48lbs

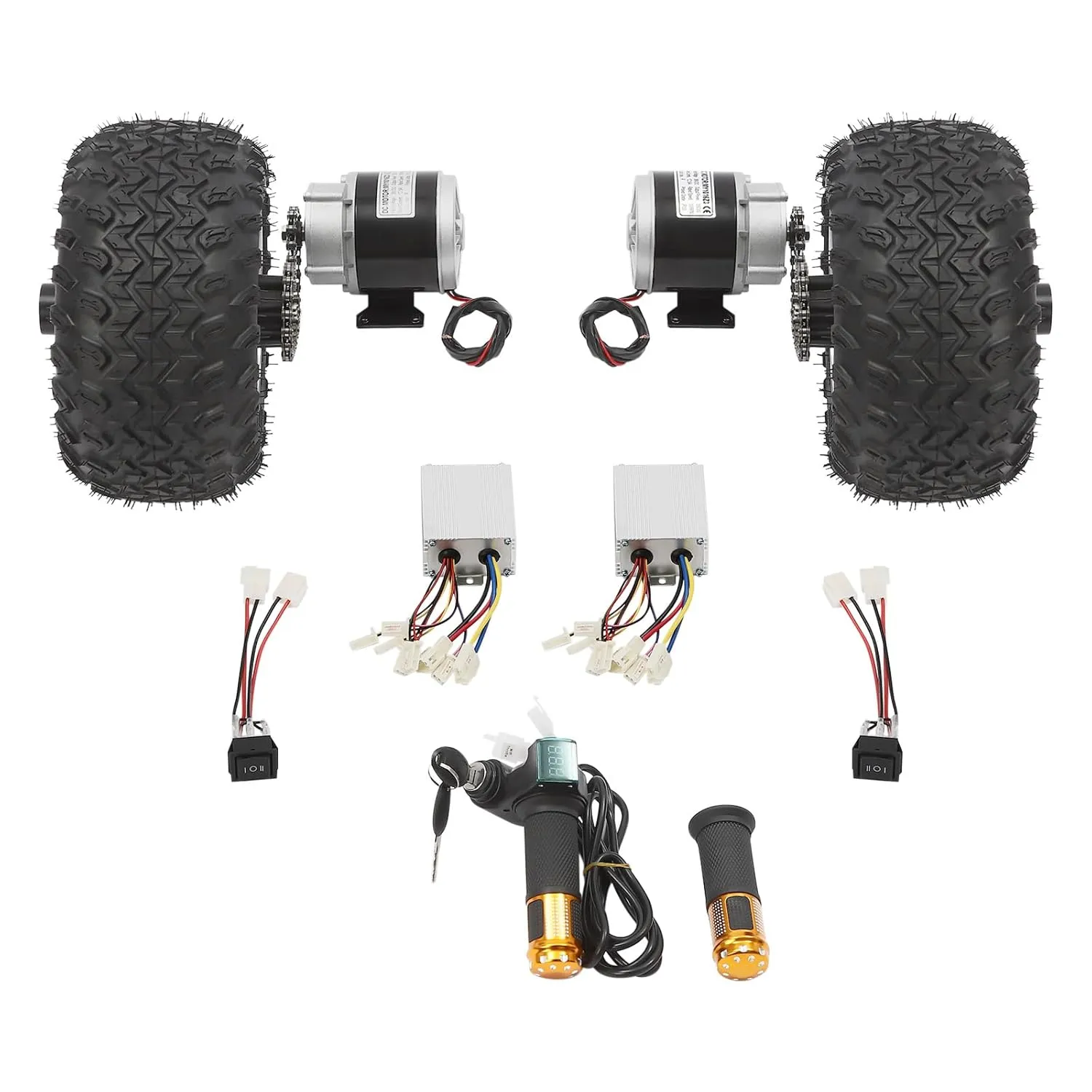

Package Included
2* Wheels
2* Motors
1* Digital Display Throttle
Other Accessories for Assembly
Notes
1. Please note that this product cannot change gears, you can adjust the speed by throttle.
2. Please note that this kit does not include batteries, you need to buy batteries separately, lead-acid batteries and lithium batteries are available, recommended battery capacity is 24V 15Ah.
3. Please note that the wheels are vacuum tires without tubes.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
